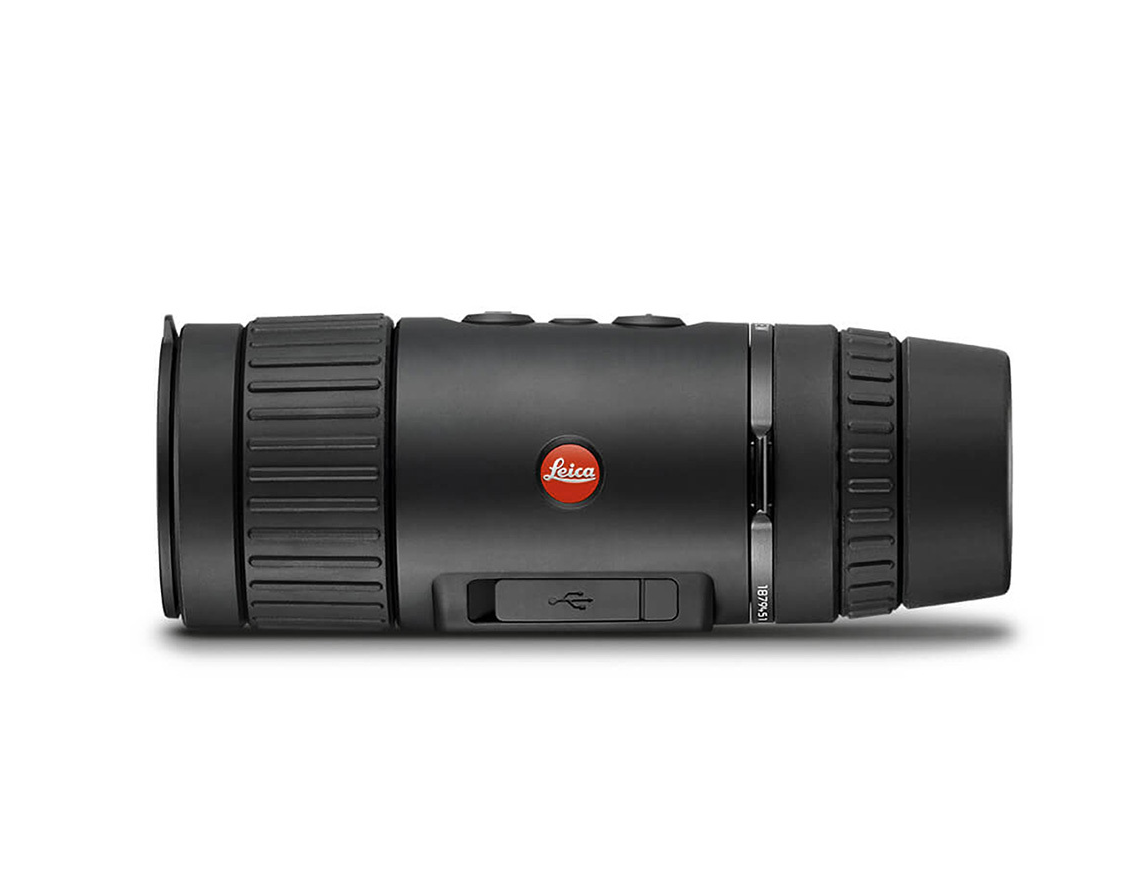

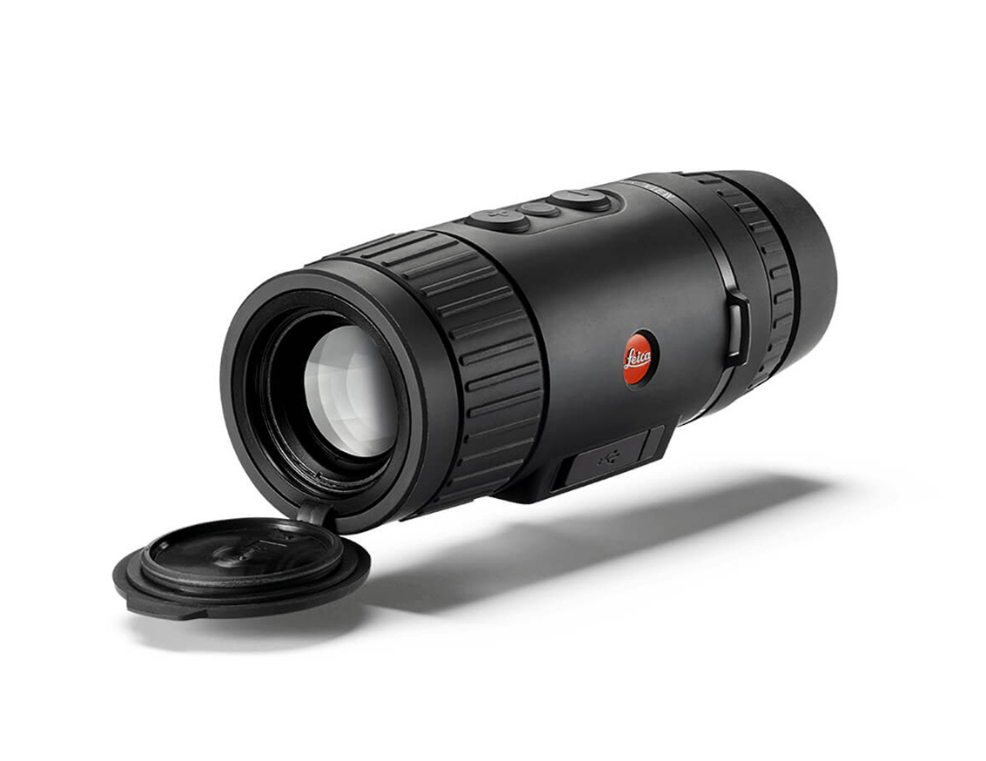

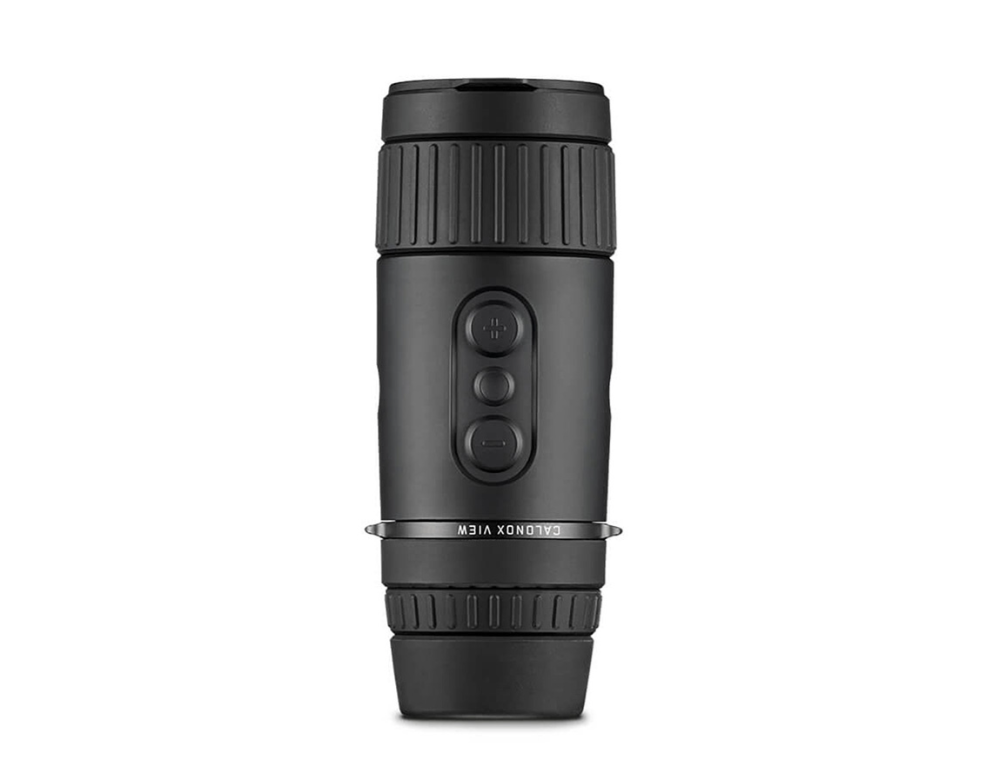

Leica - Calonox View

The Leica Calonox View thermal imaging camera is an indispensable land management companion that offers superlative image quality - by day or night and under the most challenging conditions.

The Essentials:

• 42mm objective lens
• Calonox view for observation only
• 640 x 480 pixel sensor
• 1024 x 768 OLED display for high resolution imaging and best optical picture quality.
• 2.5-10x magnification range for detailed identification
• 3000m detection range
• Photo/video function (plus live view)
• Integrated battery for optional use with power bank. Charging with USB-C cable.

• Sensor Type:

  VOx

• Sensor Size:

  640 x 512 pixels

• Pixel Size:

  12 µm

• Screen Type:

  LCOS

• Screen Diagonale:

  0.4”

• Screen Resolution:

  1280 x 960 pixels

• Image Repetition Frequency:

  50 Hz

• Lens Focal Length:

  42mm

• Optical Basic Magnification:

  2.5x

• Digital Zoom:

  1x/2x/3x/4x

• Field of View:

  10.5 x 8.4° (18.3 m x 14.6 m/100 m)

• Diopter Adjustment:

  ±5 dpt

• Range/Resolution (calculated for image subject 1.7 m x 0.5 m (66.9 inch x 20.0 inch)):

  Acquisition range/Resolution

  3000 m/2 pixels (3281 yrd/2 pixels)

  Detection range/Resolution

  1000 m/6 pixels (766 yrd/6 pixels)

  Identification range/Resolution

  500 m/12 pixels (383 yrd/12 pixels)

• Adjustment Reticle Correction:

  2.4 cm/100 m (0.86 inch / 100 yrd

• Video Output:

  PAL

• Video Recording:

  Yes

• Cable Socket:

  USB-C

• Wireless Connection:

  Wi-Fi

• Internal Memory:

  16 GB

• Protection Type:

  IPX4

• Operating Temperature:

  -10 to +50°C (-4°F to +122°F)

• Operating Temperature (Charged Battery):

  +10 to +30°C (50°F to +86°F)

• Battery Life:

  Approx. 4-5 h

• Accessory Thread:

  No

• Tripod Thread:

  A ¼ DIN 4503 (¼”), M5 standard thread

• Material:

  Plastic with rubber armoring

• Dimensions (WxH):

  170 x 65 mm (6.7 x 2.6 inch)

• Weight (with Battery):

  685 g (24.2 oz)
