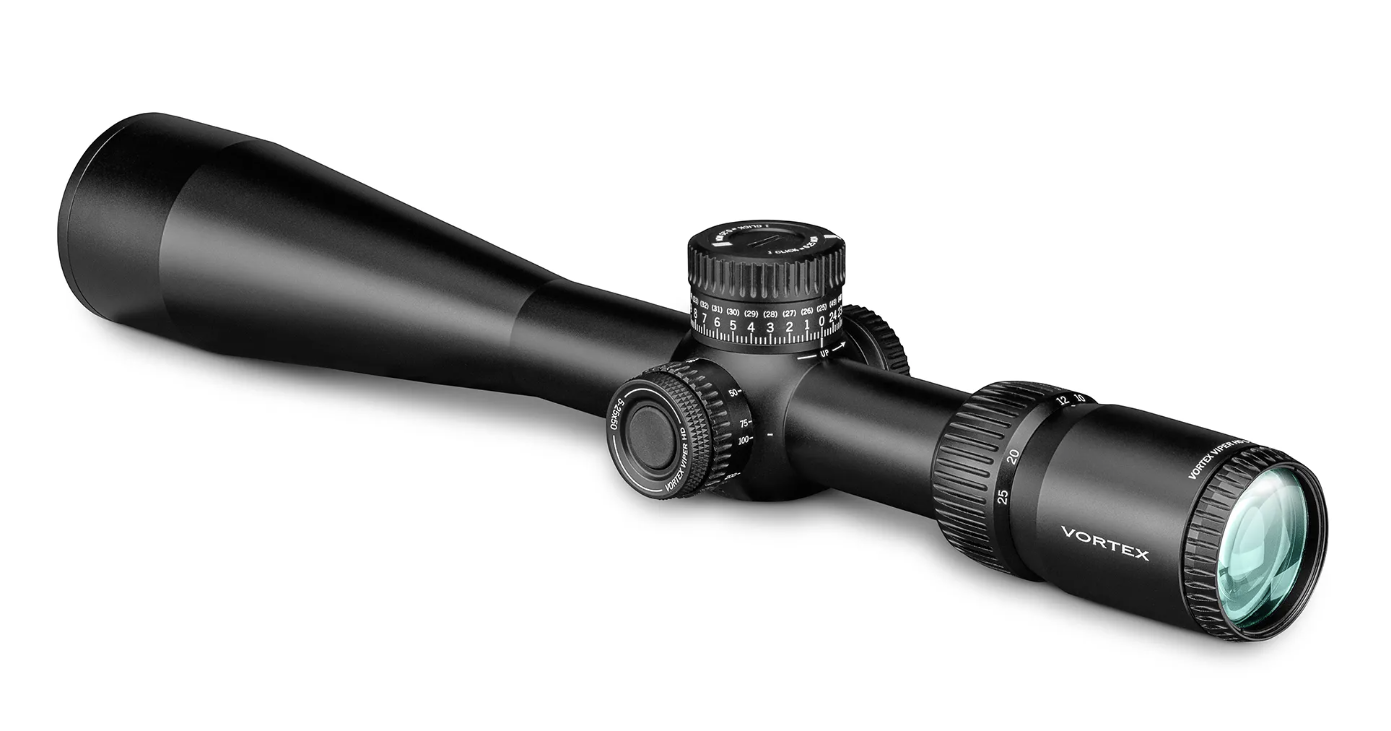

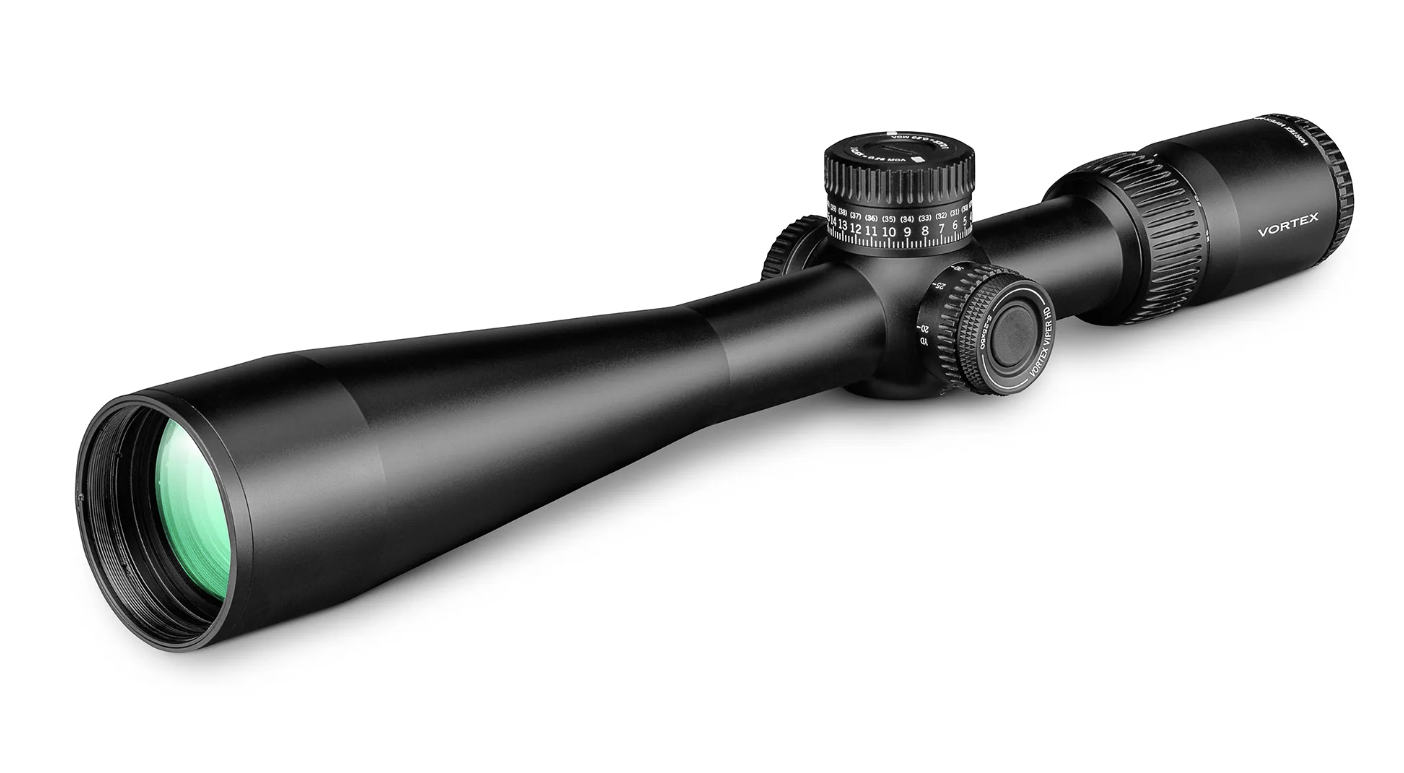

Vortex - Viper HD 5-25x50 SFP Riflescope

When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From predators to big game, river bottoms to the Rockies, there’s a field-proven configuration for every hunting application. Ultra-rugged. Remarkably adaptable. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.

Lengths
L1	L2	L3	L4	L5	L6
15.2	2.1	1.8	5.5	6.3	3.4

Heights
H1	H2
2.3	1.7



Magnification	5-25x
Objective Lens Diameter	50 mm
Focal Plane	Second Focal Plane
Reticle	VMR-3 (MOA)
Eye Relief	3.4"
Field of View	24.0' - 4.7' @ 100 yds
Turret Style	Exposed Elevation Capped Windage
Tube Size	30 mm
Adjustment Graduation	1/4 MOA
Travel Per Rotation	25 MOA
Max Elevation Adjustment	68 MOA
Max Windage Adjustment	42 MOA
Parallax Setting	20 yds. - ∞
Length	15.2"
Weight	25.0 oz
Total Elevation Adjustment w/ RevStop® installed	47 MOA

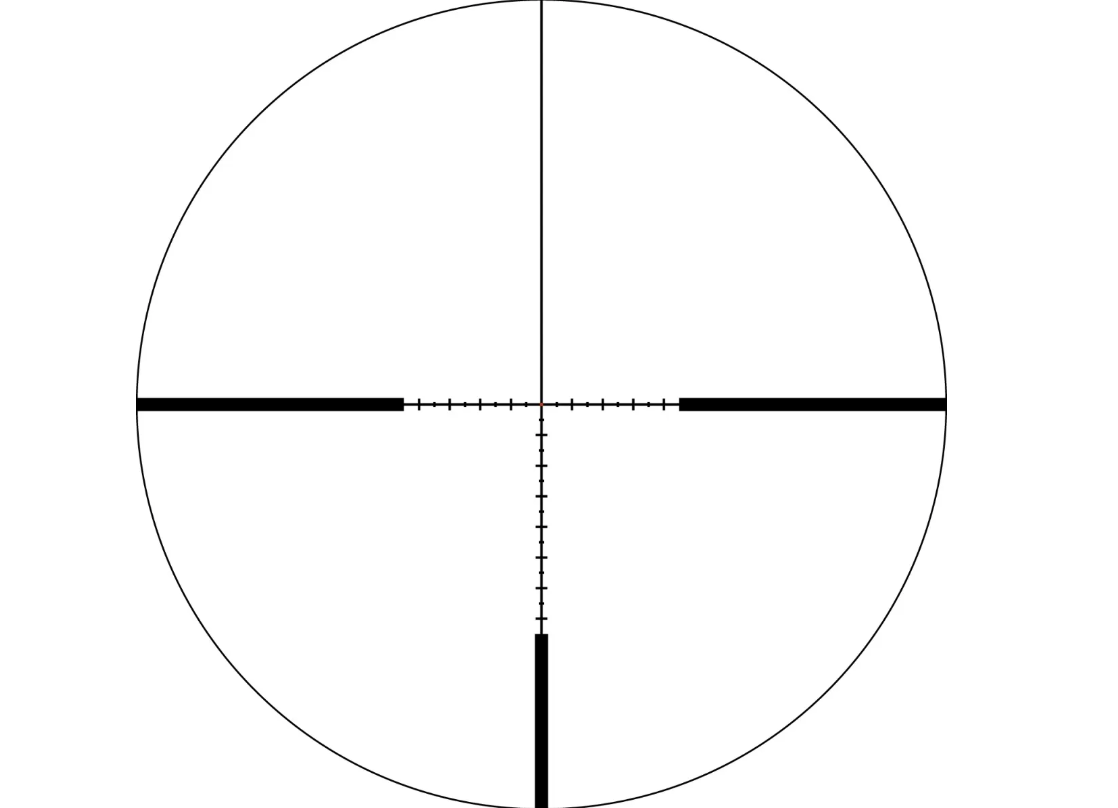

VMR-3 (MOA)

Designed to maximize long-distance shooting and ranging abilities, the VMR-3 reticle can be used to effectively determine ranges, holdovers, windage corrections, and moving target leads. The fine center crosshair subtensions on the VMR-3 reticle were carefully chosen to provide the optimum balance between precision aiming and low-light visibility.
